China New Types Steel Metal Shackle ABS Lock Body Plastic SafetyLockout Padlock
Part No.: P76S

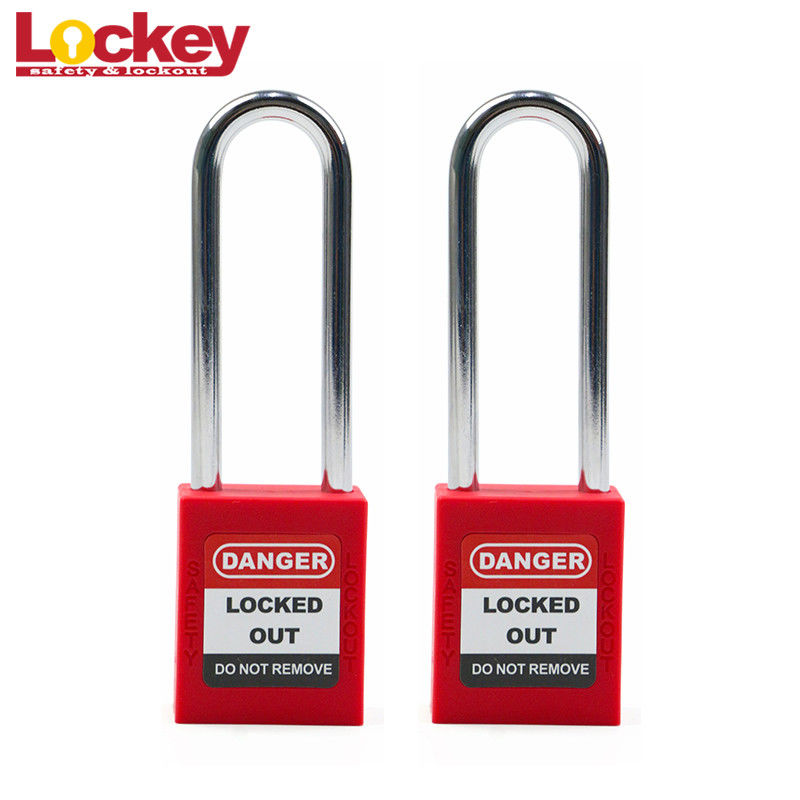

76mm Long Steel Shackle Safety Padlock
- Reinforced nylon body, withstand temperature from -20℃ to +80℃. The steel shackle is chrome plated; the non-conductive shackle is made from nylon, withstand temperature from -20℃ to +120℃, ensuring the strength and deformation fracture not easily.
- Key Retaining Feature: When the shackle is open, the key can’t be removed.
- Laser printing and logo engraving available if required.
- All different colors available.
| Part No. |
Description |
Shackle Material |
Specification |
| KA-P76S |
Keyed Alike |
Steel
|
“KA”: Each padlock is keyed the same in one group
“P”: Straight edge plastic lock body
“S”: Steel shackle
Other material can be customized:
“SS”: Stainless steel shackle
“BS”: Brass shackle
|
| KD-P76S |
Keyed Differ |
| MK-P76S |
Keyed & Alike/Differ |
| GMK-P76S |
Grand Master Key |
| KA-P76P |
Keyed Alike |
Nylon
|
| KD-P76P |
Keyed Differ |
| MK-P76P |
Keyed & Alike/Differ |
| GMK-P76P |
Grand Master Key |
Special circumstances - change of shift or personnel
Applicable conditions: shift handover or change of maintenance personnel
Requirements: the maximum valid time allowed for the Lockout tagout execution is the minimum time required to complete the task in one shift or in one shift.
Method:
A. Operators and team leaders must inform shift changers of the current status of work;
B. After the life lock and life card are removed by the authorized personnel handed over. Shift personnel shall make clear the "verification" steps of each isolation point through the copies of work permit, isolation certificate, equipment isolation plan and energy isolation sheet to verify the existence of zero energy state in the system, and then use the life lock and life card;
Special circumstances - third party contractors
Applicable conditions:
Activities of external contractors within the company
Requirements:
LOTO procedures performed by external contractors must be no less than the company's LOTO standards, as well as using life locks
Method:
The maintenance site must appoint an employee as the supervisor and coordinator;
The company's authorized personnel must be the last to remove the lock before the contractor locks it.
