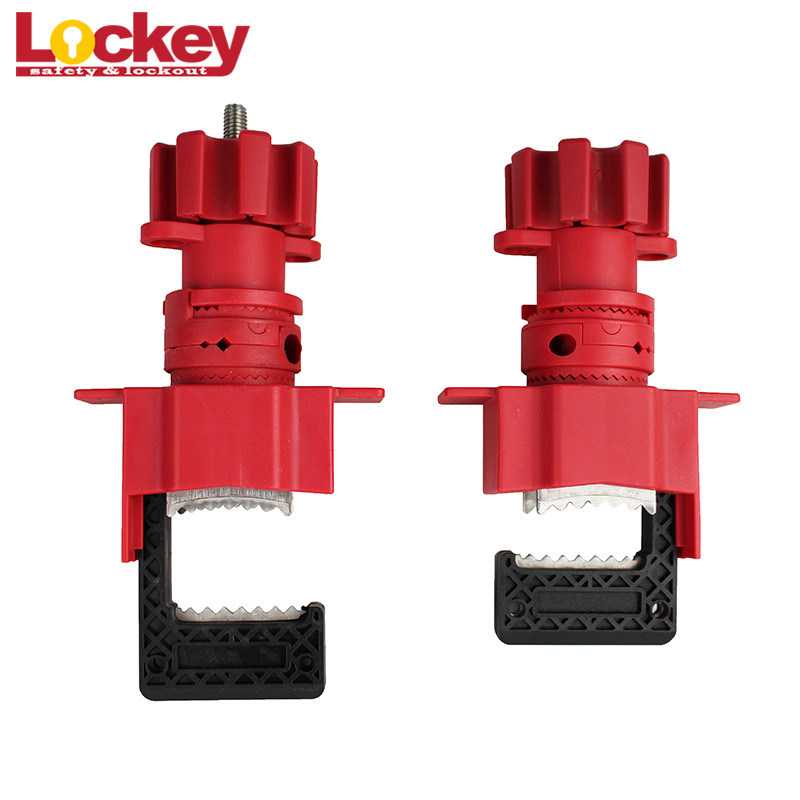

40mm Oversized Clamp Loto Gate Valve Lockout Devices

40mm Oversized Clamp Loto Gate Valve Lockout Devices

    • 40mm Oversized Clamp Loto Gate Valve Lockout Devices
    • 40mm Oversized Clamp Loto Gate Valve Lockout Devices
  • 40mm Oversized Clamp Loto Gate Valve Lockout Devices

    Product Details:

    Place of Origin: Wenzhou, China
    Brand Name: LOCKEY
    Certification: CE, ISO 9001, OHSAS 18001
    Model Number: UVL04P

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: negotiable
    Packaging Details: carton
    Delivery Time: 1-5 working days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Industrial Grade Steel And Nylon Type: Durable, Light Weight
    Suitable For: Large Levers Of Valves, T-handles Product Name: Oversized Clamp Universal Gate Valve Lockout
    Max Handle: 40mm Usage: Enables To Lock Out Valves Of Different Types And Sizes
    High Light:

    40mm Gate Valve Lockout

    ,

    Loto Gate Valve Lockout

    ,

    Gate Valve Lockout Devices

    Durable Loto Devices Oversized Clamp Universal Gate Valve Lockout Plus

    Part No.: UVL04P

    Oversized Clamp Universal Gate Valve Lockout

    • Made from industrial grade steel and nylon.
    • Enables to lock out valves of different types and sizes, such as large levers of valves, T-handles and other hard-to-secure mechanical devices.
    • No other device offers such flexibility and security.
    • Designed to handle extra impact and resist chemicals making them ideal for just about any environment.
    • Max handle width 40mm (max handle thickness 45mm).
    • Can be matched with different fittings to make a series of widened universal valves.



    Part No. Description
    UVL01 With 1 arm-For quarter-turn ball valves
    UVL02 With 2 arms- For 3,4 or 5 – way valves, or to lock valves in the “on”, “off”, or “throttled” position
    UVL03 With coated cable-Using cable attachment for gate valves
    UVL04 Base clamp only-For butterfly valves
    UVL05 With 1 arm& coated cable-Universal valve lockout for most valves
    UVL04S Max handle width 25mm (max handle thickness 15mm)
    UVL04P Max handle width 40mm (max handle thickness 45mm)



    Valve lockout selection

    1. We should select a network system with sufficient economic strength and stability to guarantee service and after-sale service and avoid disputes caused by product quality problems.

    2. The valve can be divided into ball valve, butterfly valve, gate valve, rotary valve, etc. Therefore, when selecting the valve lock, you should also know the type of valve you need.

    3. Valve locks can be selected from a variety of materials. Select appropriate locks according to the environment used by locks, such as air dry humidity, high temperature and acid and alkali resistance.

    4. Look at the safety standards. There are strict standards for hardware locks at home and abroad.

    5. Valve size: different valves take different sizes into consideration. Select the matching valve locks.

    6. Check whether the label and mark of valve lock package are complete (including product execution standard, grade, manufacturer's name, address and production date), and whether the package is firm, and whether the description is consistent with the product, and be careful to prevent any exaggeration and inconsistency with the fact.

    7. Select the brand manufacturer with good after-sales service, and determine that the locking and listing scheme can be selected with professional guidance.
